Modify a Signal

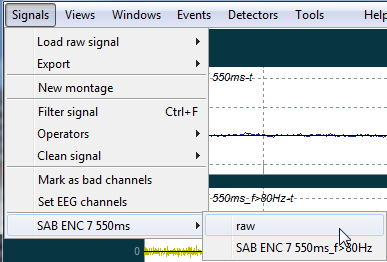

To access a signal information, modify its name, or delete the signal, go to the Signals menu and click on the name:

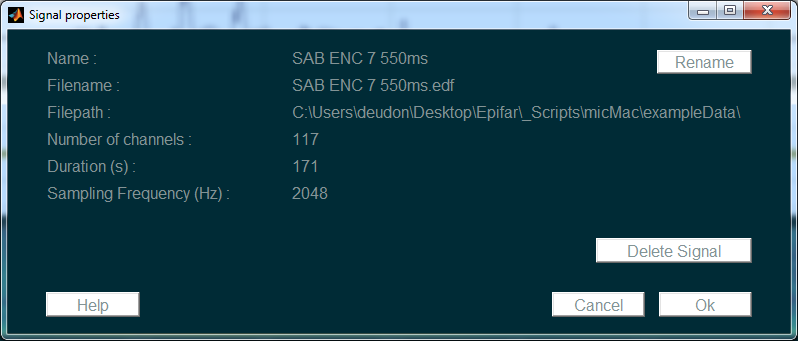

The following window appears:

This window sums up the signal’s properties. The signal’s name can be modify with the Rename button. The signal can also be deleted using the Delete Signal button.

Note

Only raw signals can be renamed or deleted. When renaming a raw signal, all the child signals will also be renamed. Similarly, deleting a raw signal will also delete all child signals.
