Channel Correspondency

When working with several related signals, the channel correpondency between the two signals has to be set. This can be done when loading the signal or by accessing signal information.

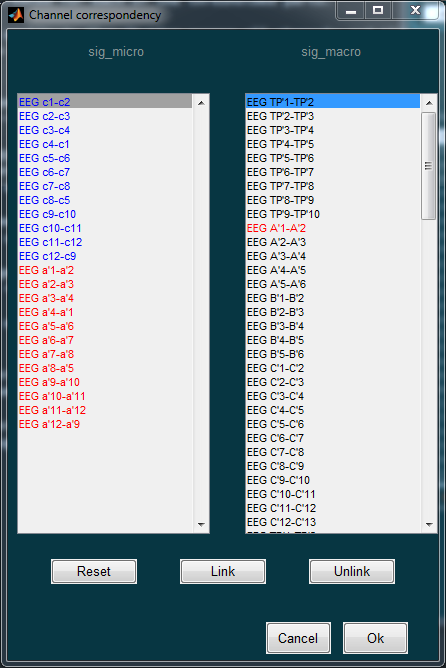

The following interface appears :

To link channels between the two signals, select the corresponding channels on the two lists and clink the Link button. To remove a link, select the channels and push the Unlink button. The Reset button will remove all links.

Note

micMac will automatically try to detect the correspondency between channels based on the name of the channels.
