Importing EventsΒΆ

Events can be imported into micMac using the Events/Import menu.

micMac can import events from :

  • micMac - when events are saved from micmac (*.csv, *.txt)
  • Anywave/Delphos (*.mrk, *.csv, *.txt)
  • External events

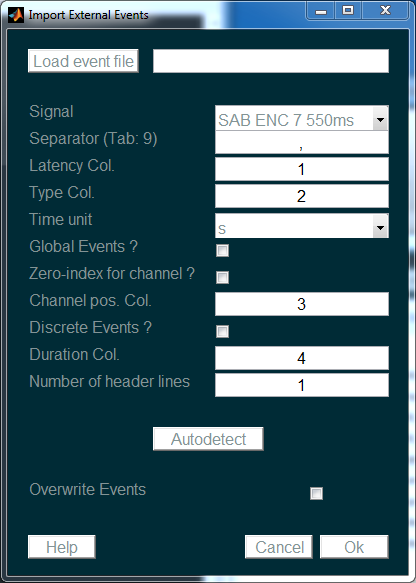

Use the Events/Import/External events to open the following window :

../_images/events_import_external.png

The fields are :

  • The Latency column should give the time of each event, select the Time unit according to it, which can be in seconds or milliseconds.
  • The Type column gives the type/name of each event.
  • The Channel pos column should give the channel number.
  • The Duration column gives the duration of the events.

If events are defined for all channels, check the Global Events ? checkbox. If the first channel is indexed by 0, check the Zero-index for channel?.

The Autodetect button will try to detect automatically the position of each column.
