Add a viewΒΆ

To add a view, go to Views/Add View. The following appears:

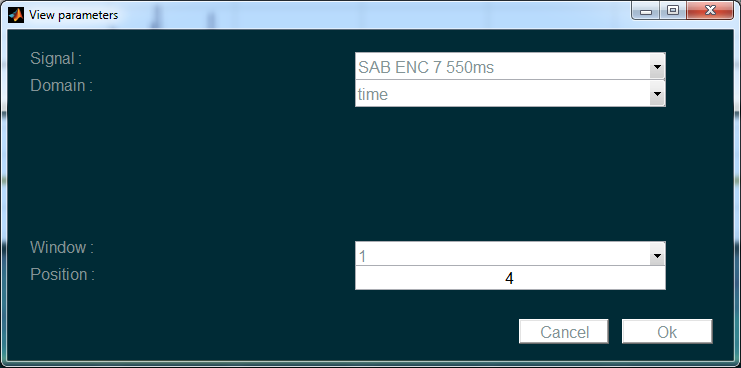

../_images/view_add_view_t.png

Temporal domain

Parameters are:

  • Signal : Signal associated with the view.
  • Domain : Domain of visualisation. Can be time, frequency, or time-frequency.
  • Window : Number of the window where to add it.
  • Position : Position of the view in the window.

For frequency domain views, i.e. power spectrum representation,

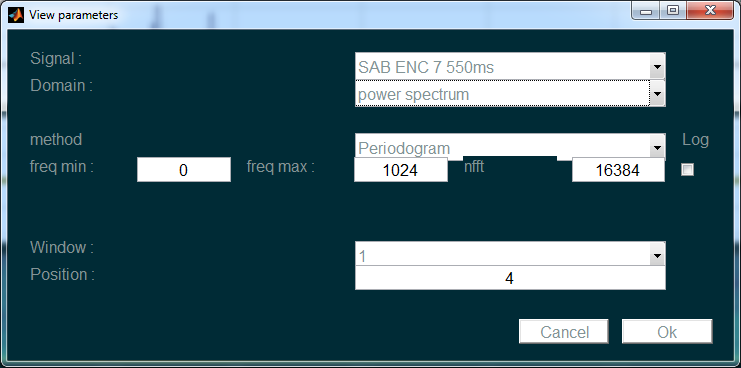

../_images/view_add_view_f.png

frequency domain

additional parameters are :

  • freq min : Minimum frequency visualised frequency.
  • freq max : Maximum frequency visualised frequency.

For time-frequency domain views,

../_images/view_add_view_tf.png

time-frequency domain

additional parameters are :

  • wavelet name : name of wavelet. By default micMac uses a Complex Morlet wavelet (cmor1-1.5).
  • freq min : Minimum pseudo-frequency visualised frequency.
  • freq max : Maximum pseudo-frequency visualised frequency.
  • freq step or num freqs : Step between two pseudo-frequencies OR the number of frequencies (when Log scale is on)
  • Log : If on, the frequency scale increases logarithmically.

Phase views share the same parameter as the time-frequency views.

Note

Frequency domain, time-frequency, and phase domain views do not appears on Stacked mode (visualisation mode 1). Select the Spaced mode to visualise them.
